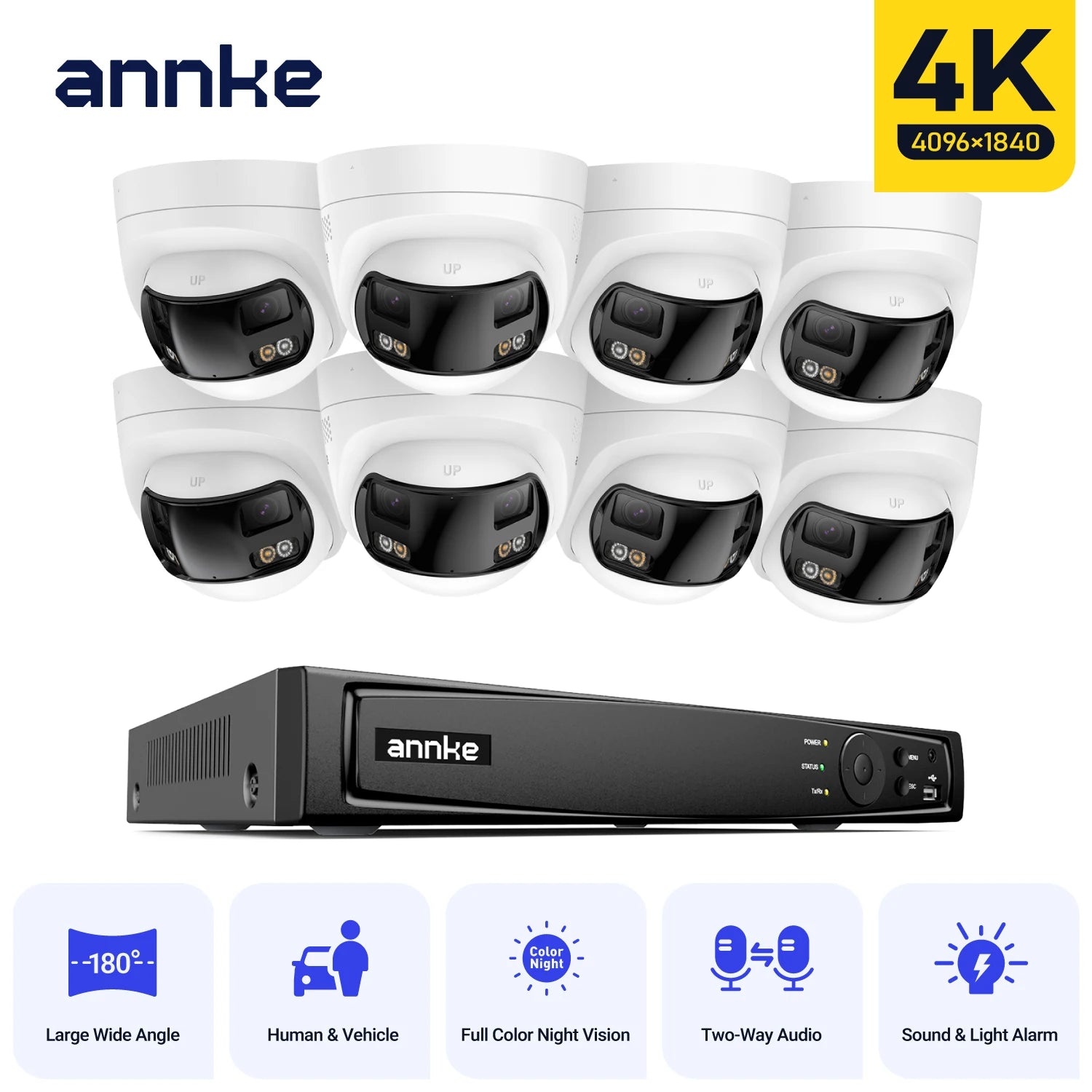

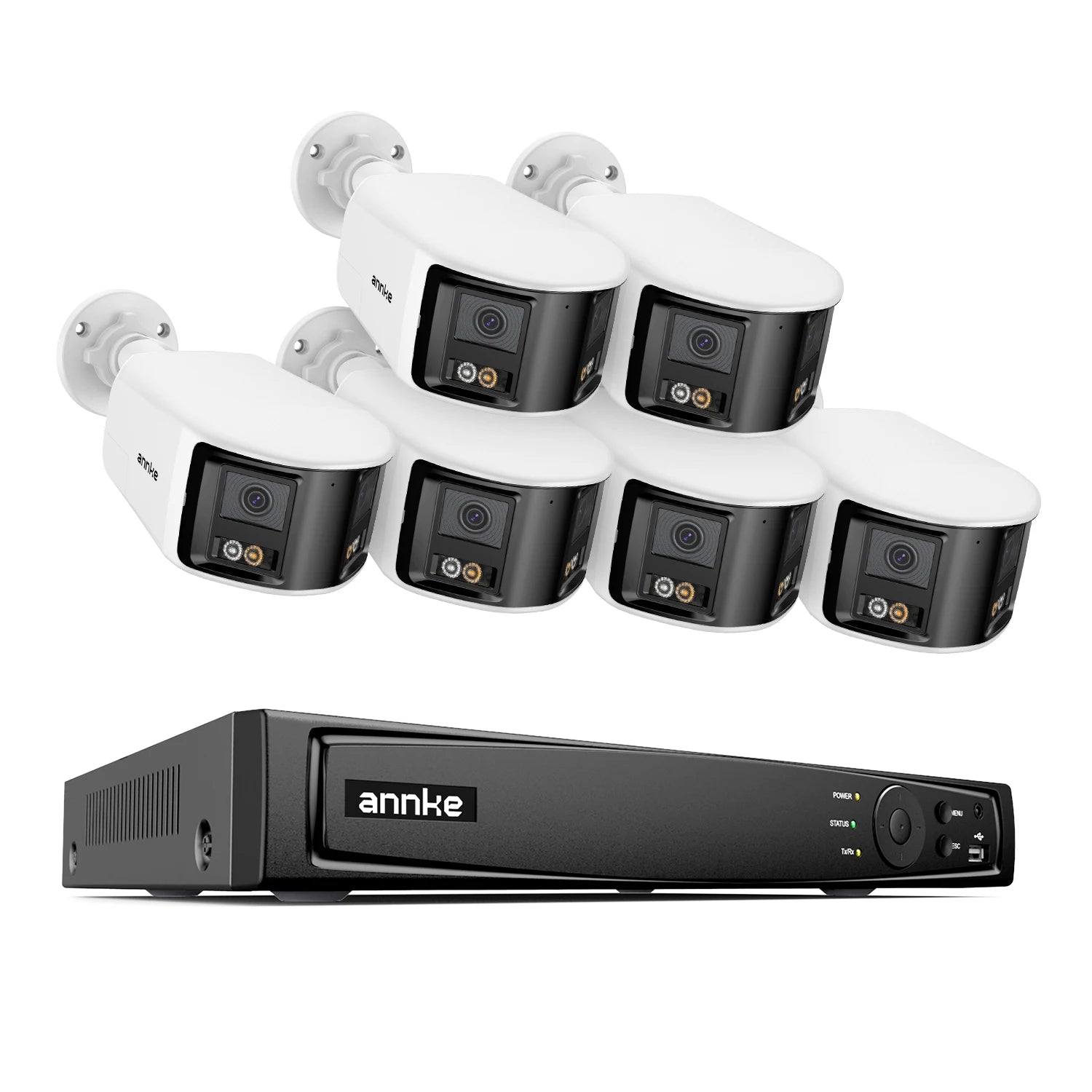

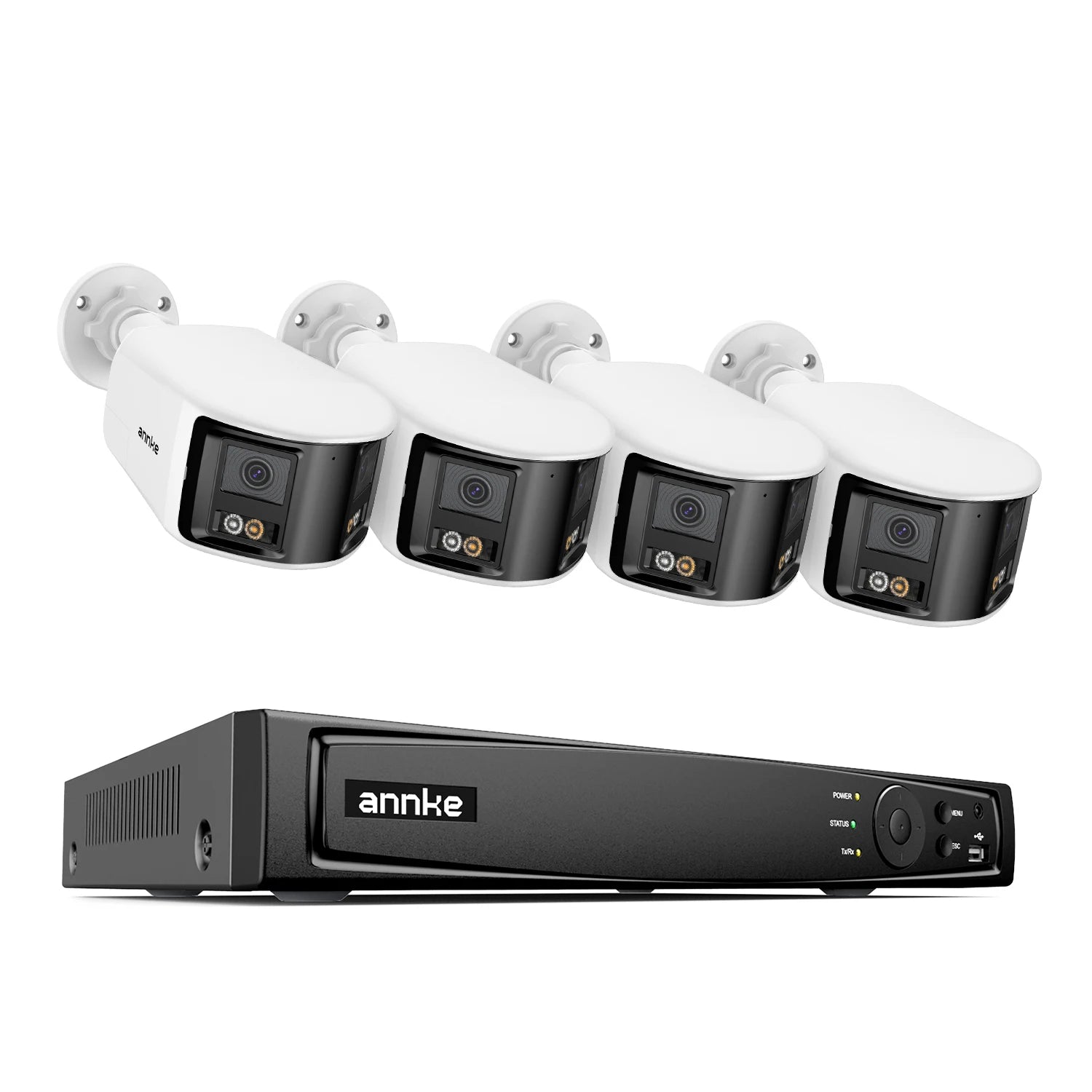

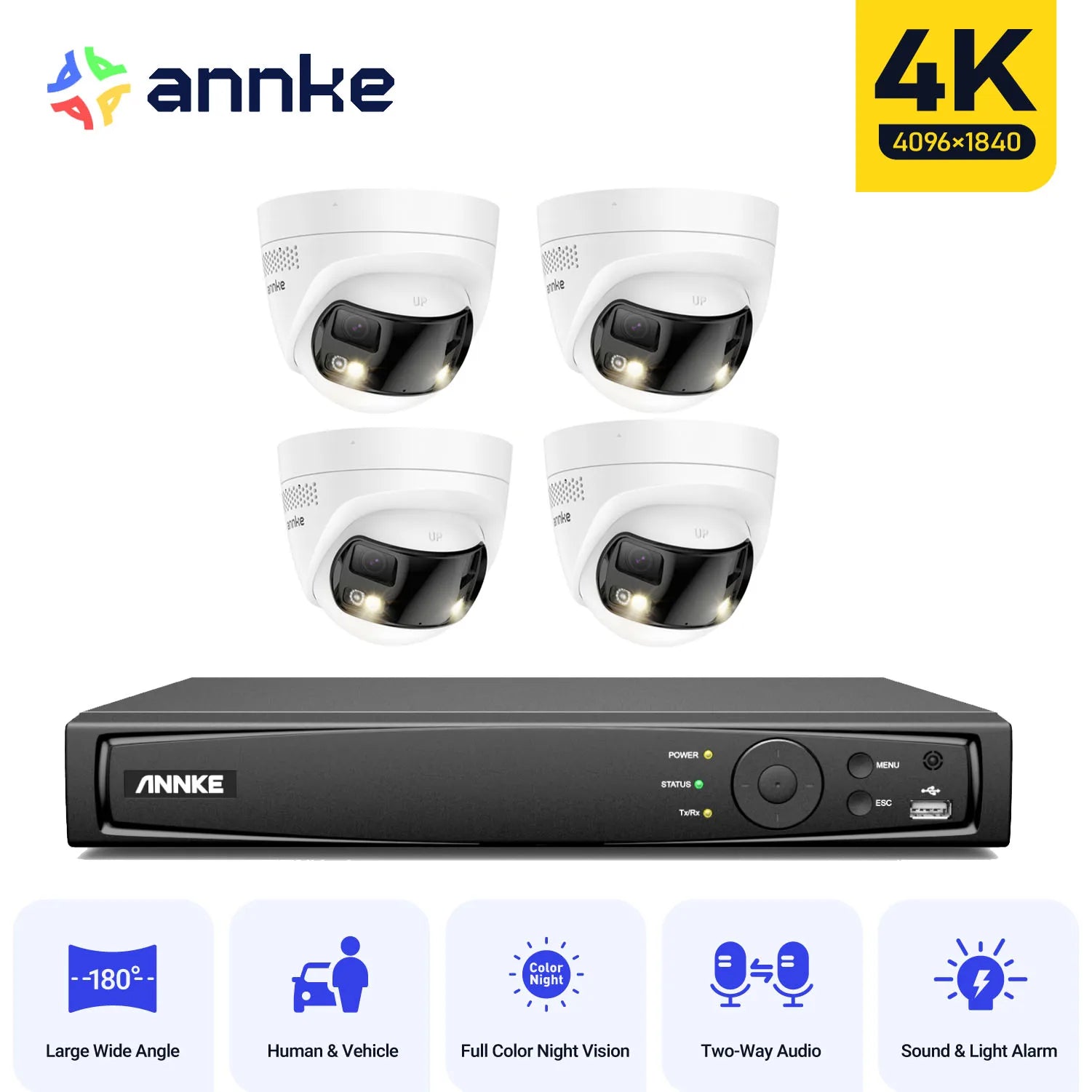

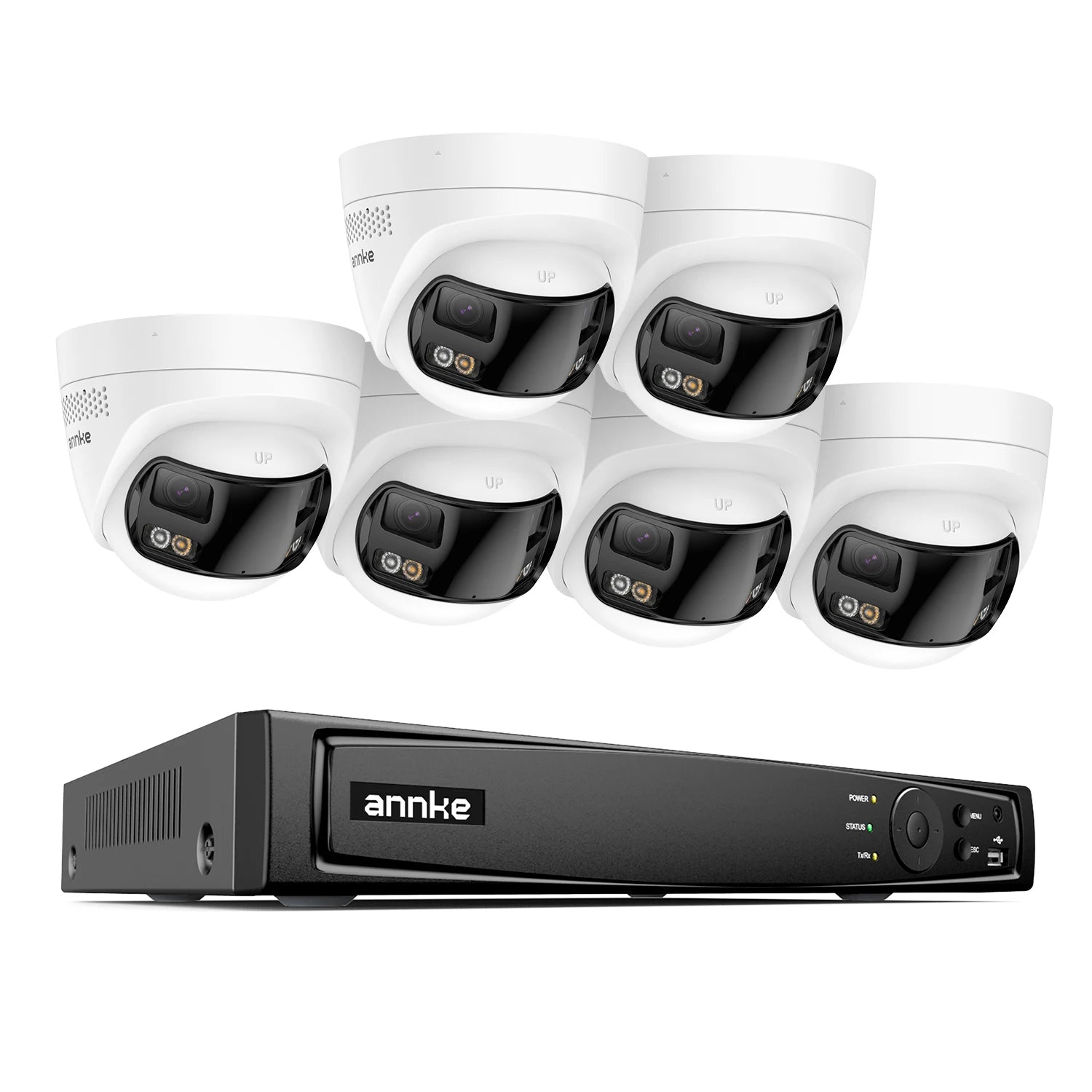

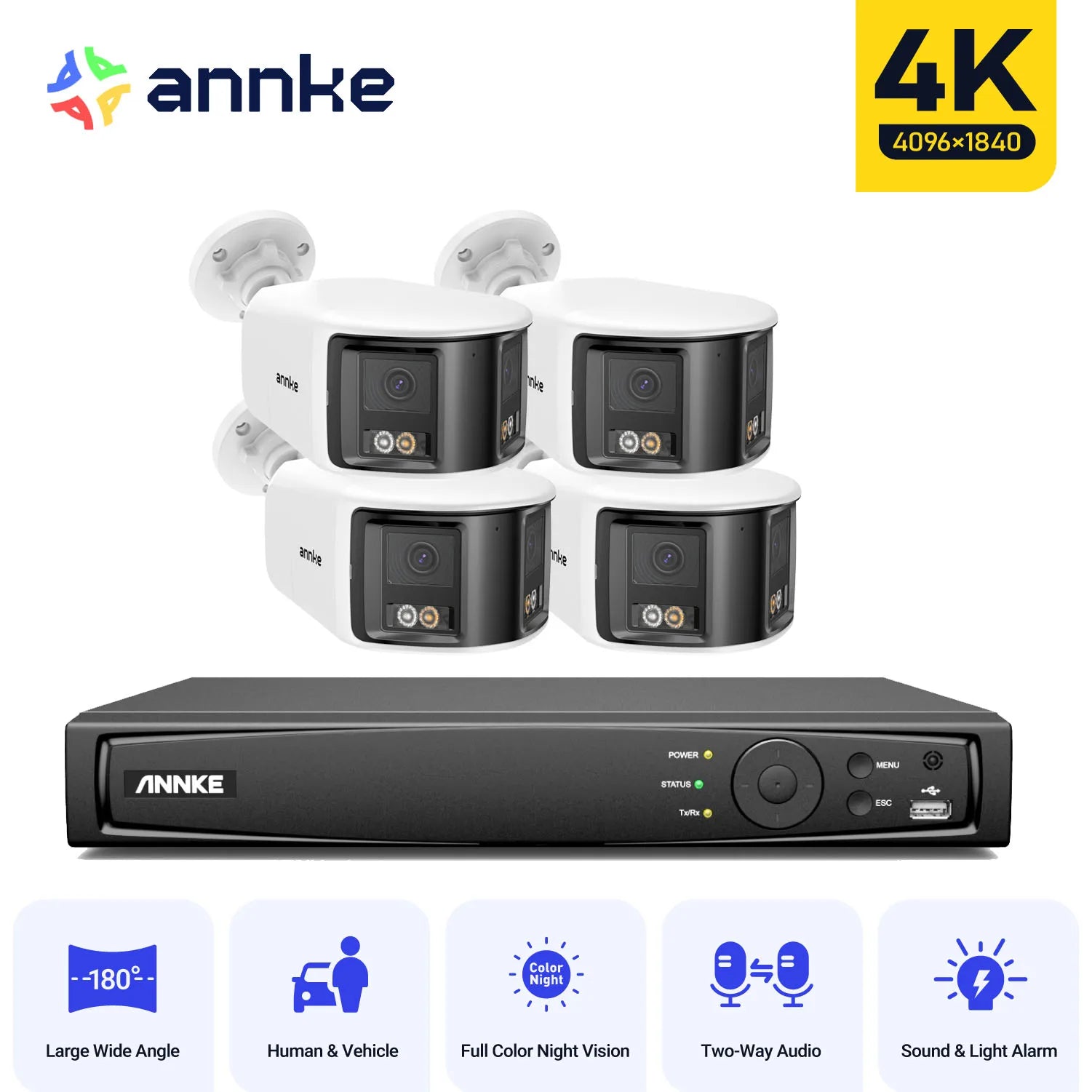

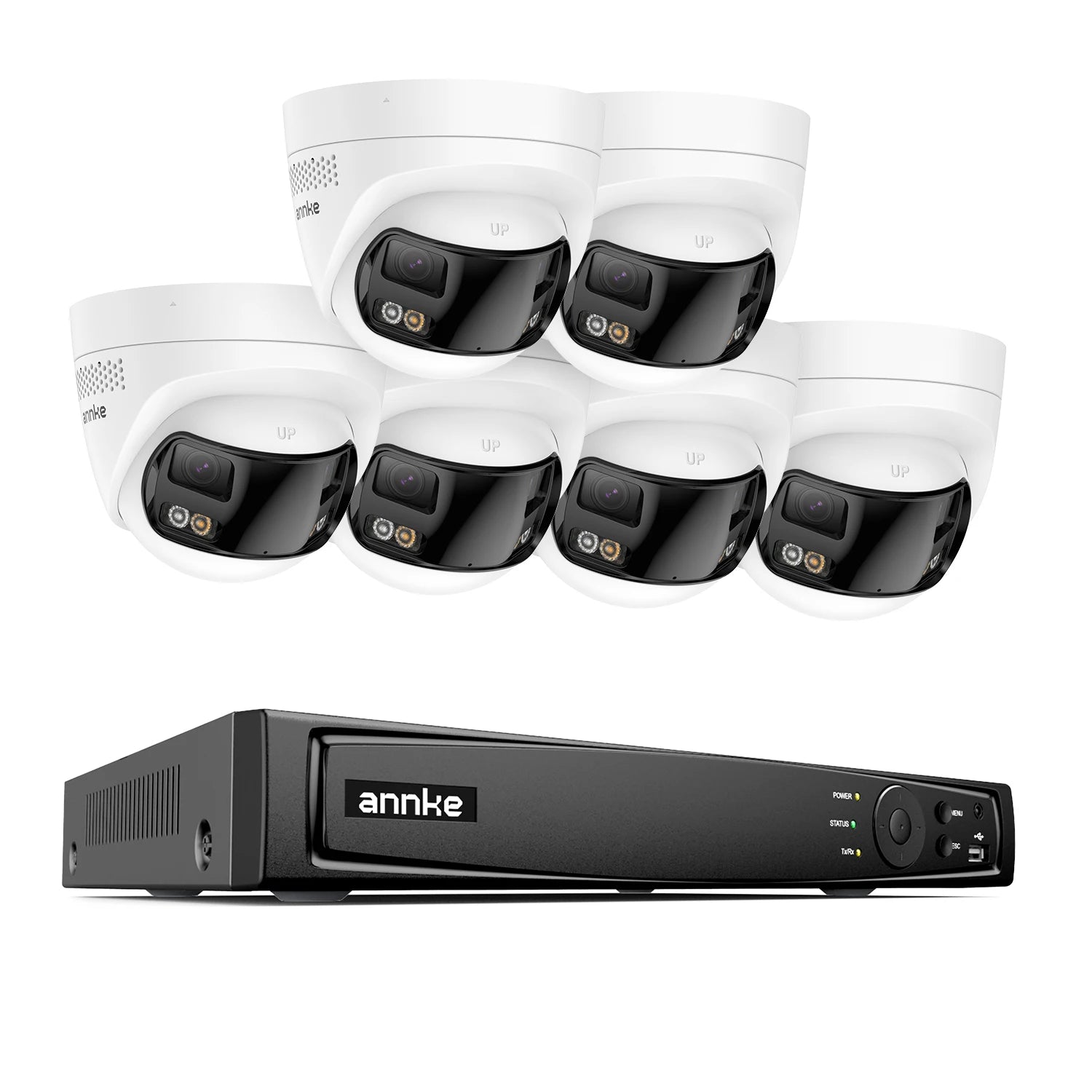

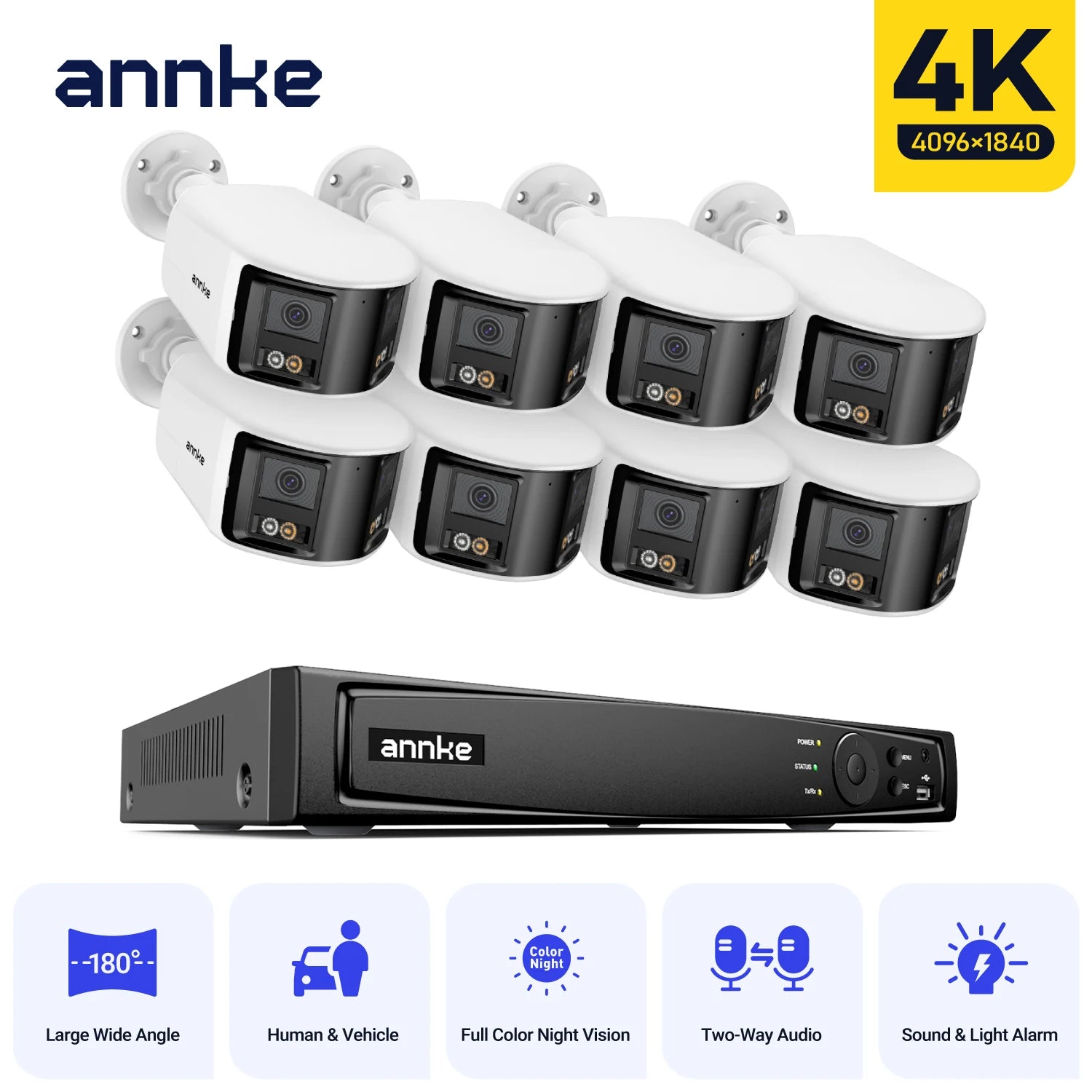

ANNKE 4K Security Camera System With 180 Degree Panoramic Lens
ANNKE 4K Security Camera System With 180 Degree Panoramic Lens
Couldn't load pickup availability
Experience true 180° panoramic surveillance with dual-lens clarity that leaves every corner visible to you.
- Dual-lens fusion provides a seamless 180° field of view, eliminating blind spots for wider, clearer coverage across entryways, yards, and corridors you monitor.

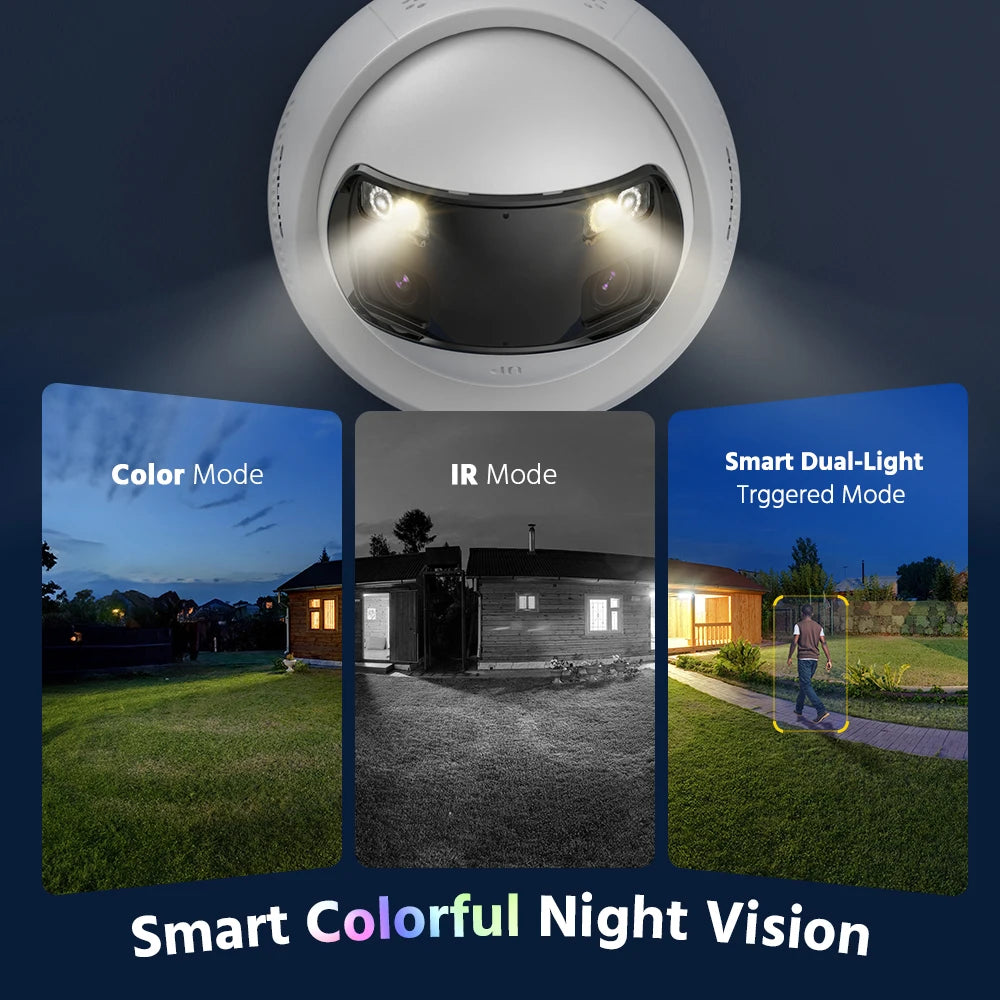

- Smart Dual-Light offers day-and-night visibility: white light and IR up to 30 m, switching to full color when motion is detected to capture detail.
- Motion 2.0 AI identifies people and vehicles with high accuracy, dynamically ignoring irrelevant movement to reduce notifications and save you time.
- The NVR supports HDMI output up to 4K, up to 8 PoE cameras, and mobile remote viewing, with flexible storage for up to 512 GB TF so you never lose important footage.
NVR | ||
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K (3840 × 2160), VGA up to 1080p(1920 × 1080) |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 Mbps |
|
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|

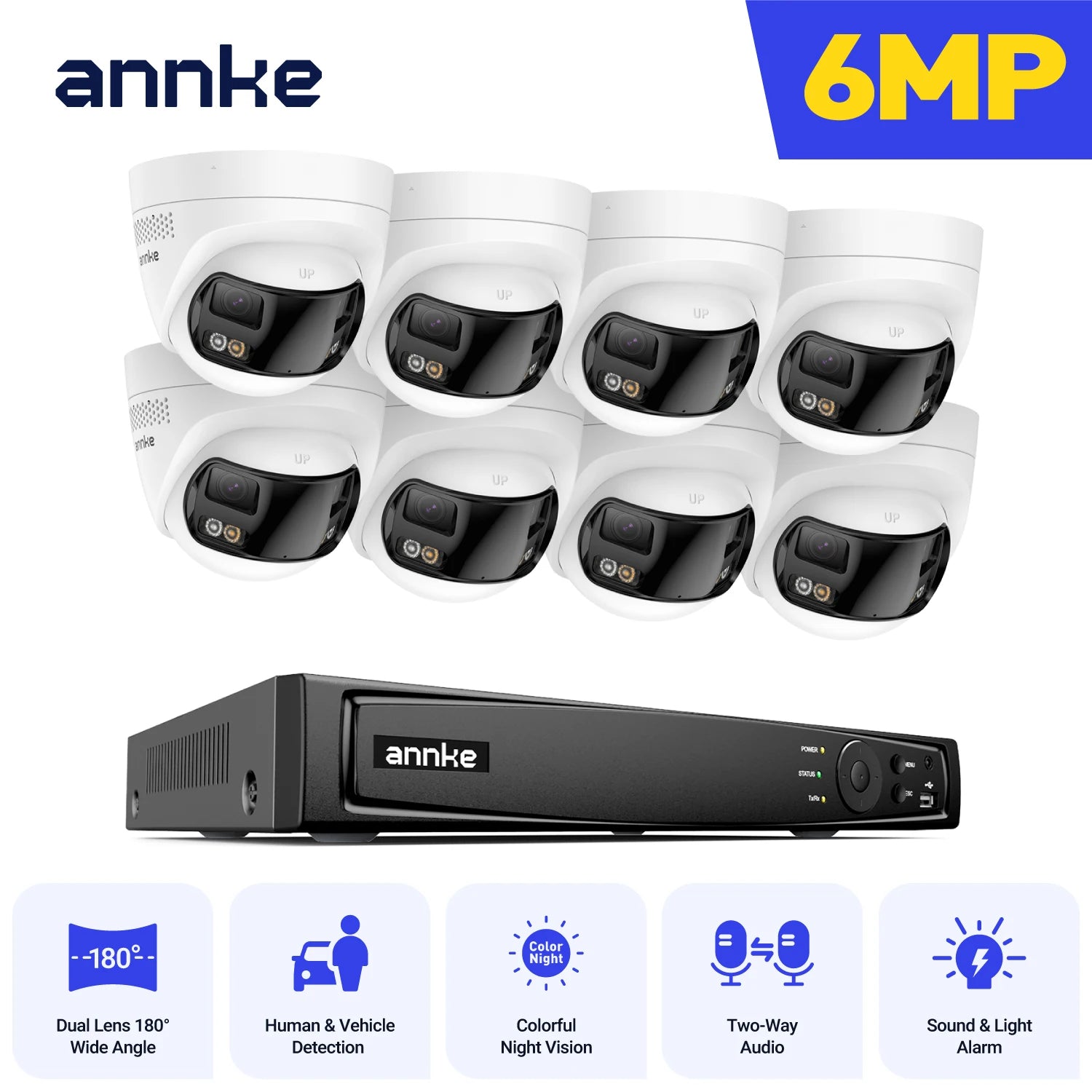

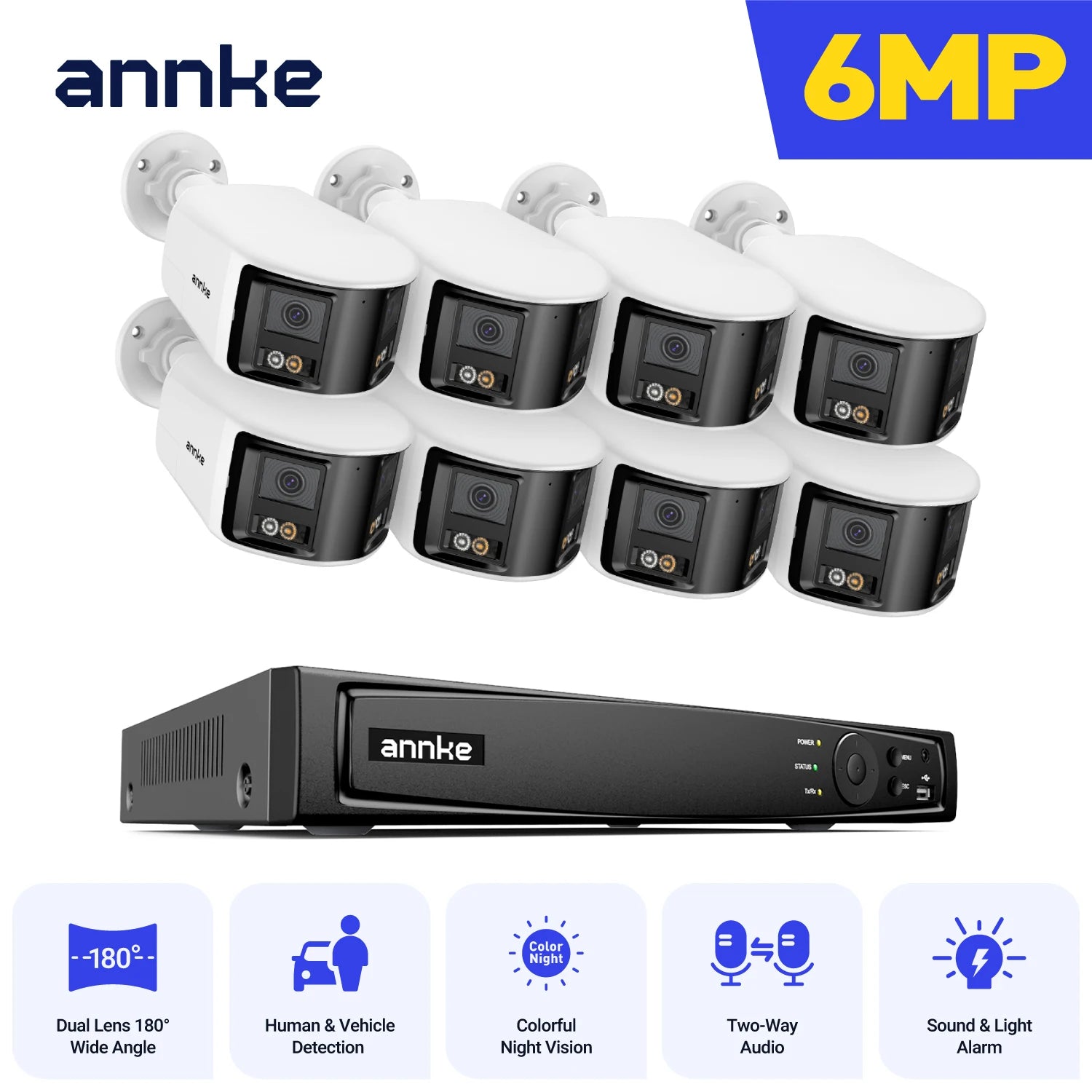

Model Number |
6MP 51HD/51FS |
|
IP Camera | ||
Camera |
Image sensor |
2×1/2.5" Progressive Scan CMOS |
Max resolution |
3632 × 1632 |
|
Main Stream |
50 Hz: 20 fps (3632 × 1632) |
|
Sub Stream |
50 Hz：20 fps（1200 × 536, 960 × 432） |
|
Video compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Built-in Microphone |
Built-in Microphone, record with audio |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Built-in Speaker |
Yes, max. sound pressure: 10 cm: 97 dB |
|
Lens |
Dual lens: 2.8 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON) |
|
Angle of View |
Horizontal FOV: 180°, Vertical FOV: 77° |
|
Supplement Light Type |
Smart light, white light, IR light |
|
Supplement Light Range |
White light up to 30 m, IR light up to 30m |
|
Motion detection 2.0 |
Supoort, include human & vehicle detection |
|
Image Parameters Switch |
Yes |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120dB WDR |
|
Network Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP |
|
API |
Support Open Network Video Interface protocol, version 19.12 |
|
Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
|
Audio Alarm |
Support, parameters adjustable,support custom audio, can be triggered from APP |
|
Flashing Alarm |
White light, frequency adjustable, can be triggered from APP |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate, remote access, IP Address Filter |
|
General |
Housing |
Metal&Plastic, white color |

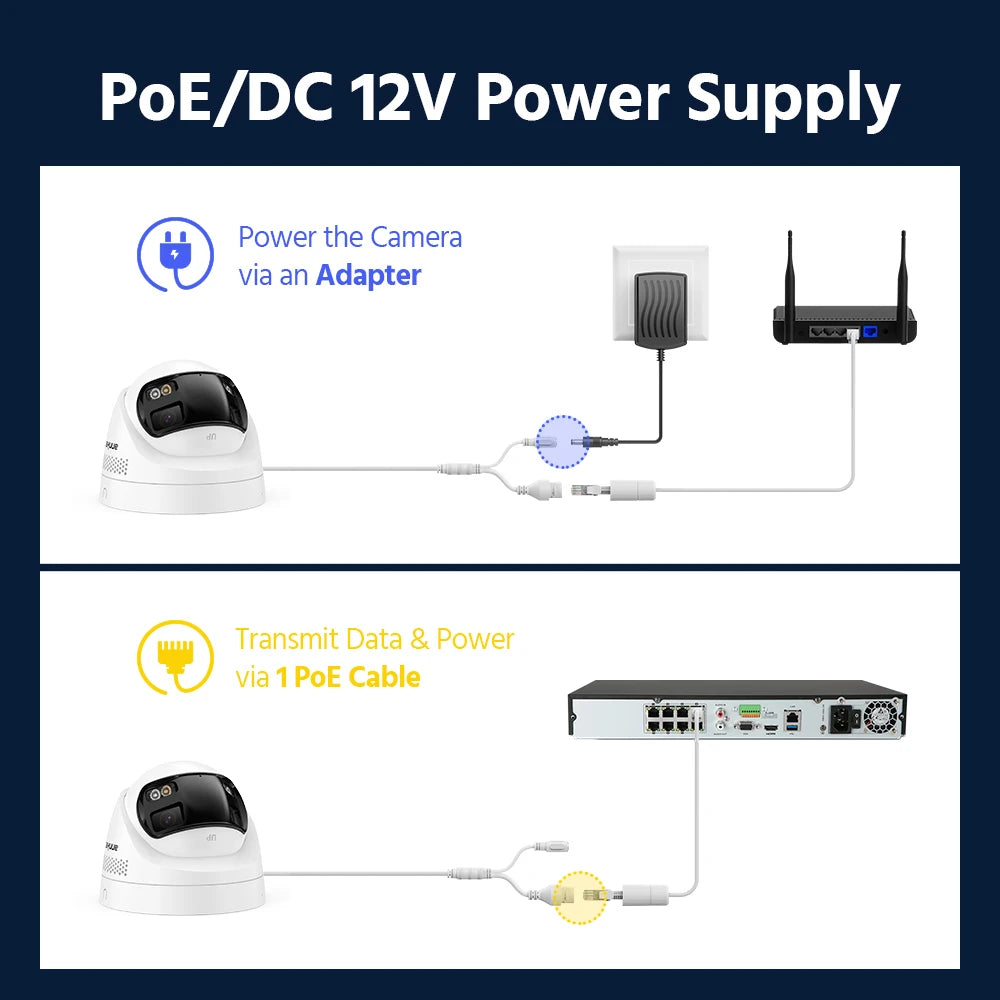

Operating Power |
PoE (802.3af)，max 11.5W, |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Storage |
Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
Ø 130.1 mm × 109.1 mm (Ø 5.1" × 4.3") |
|
Weight |
Approx. 580 g (1.3 lb.) |
|
Model Number |
8MP 91ET/91EV |
|
IP Camera | ||
Camera |
Image sensor |
2×1/2.4" Progressive Scan CMOS |
Max resolution |
4096 x 1860 |
|
Main Stream |
50 Hz: 20 fps (4096 x 1860) |
|
Sub Stream |
50 Hz：20 fps（1200 × 536, 960 × 432） |
|
Video compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Built-in Microphone |
Built-in Microphone, record with audio |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Built-in Speaker |
Yes, max. sound pressure: 10 cm: 97 dB |
|
Lens |
Dual lens: 2 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON) |
|
Angle of View |
Horizontal FOV: 180°, Vertical FOV: 77° |
|
Supplement Light Type |
Smart light, white light, IR light |
|
Supplement Light Range |
White light up to 30 m, IR light up to 30m |
|
Motion detection 2.0 |
Supoort, include human & vehicle detection |
|
Image Parameters Switch |
Yes |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120dB WDR |
|
Network Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP |
|
API |
Support Open Network Video Interface protocol, version 19.12 |
|
Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
|
Audio Alarm |
Support(Parameters adjustable,support custom audio, can be triggered from APP) |
|
Flashing Alarm |
White light, frequency adjustable, can be triggered from APP |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate, remote access, IP Address Filter |
|
General |
Housing |
Metal&Plastic, white color |
Operating Power |
PoE (802.3af)，max 11.5W, |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Storage |
Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
Ø 130.1 mm × 109.1 mm (Ø 5.1" × 4.3") |
|
Weight |
Approx. 586 g (1.3 lb.) |
|
