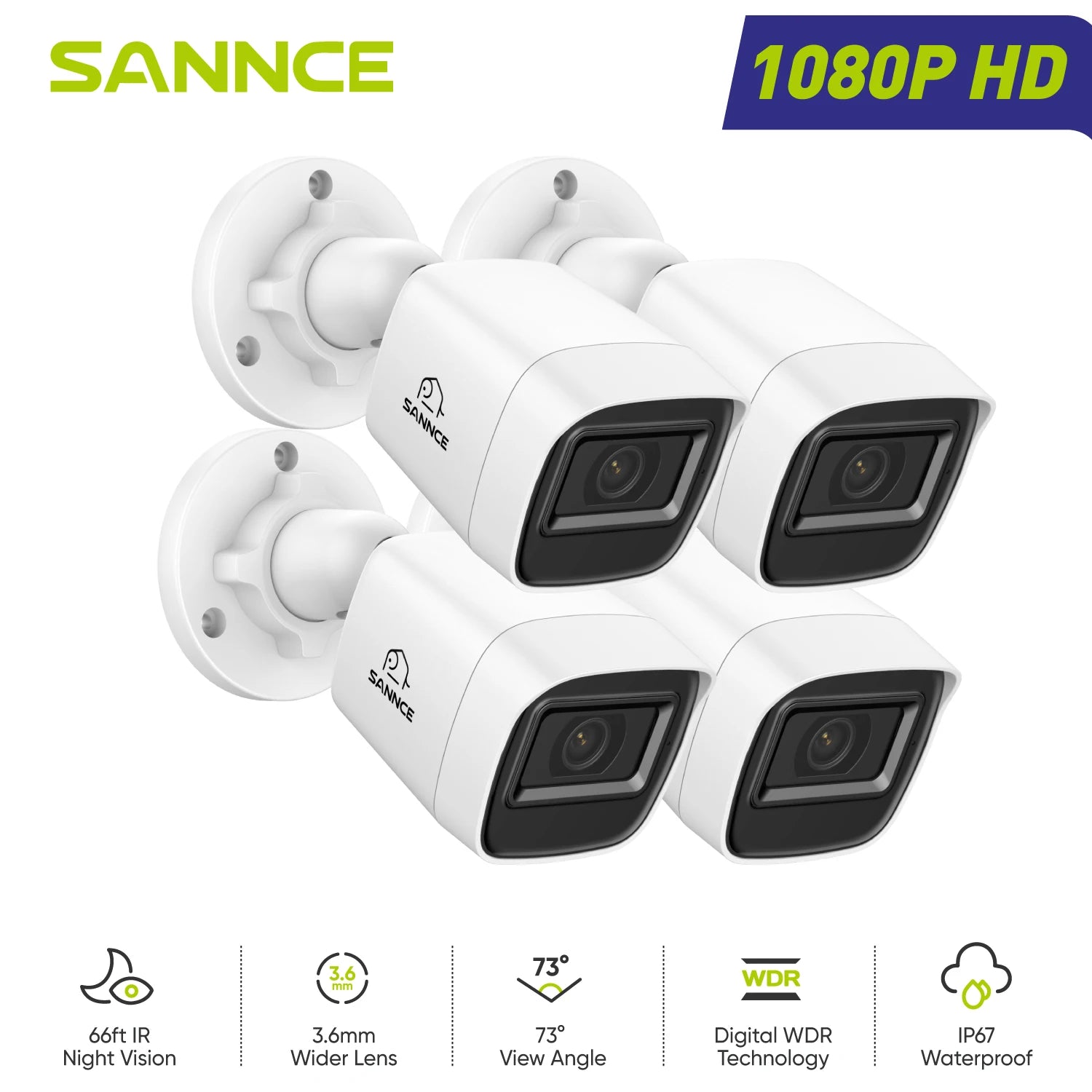

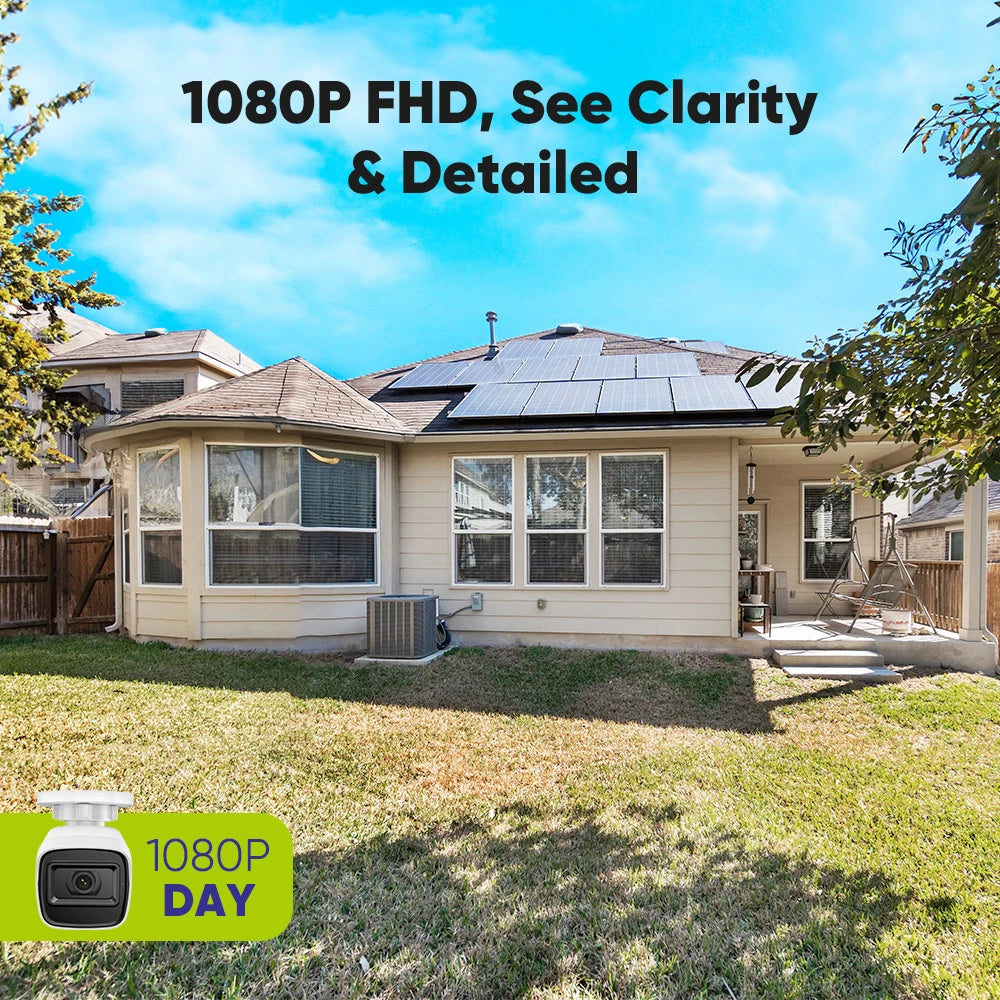

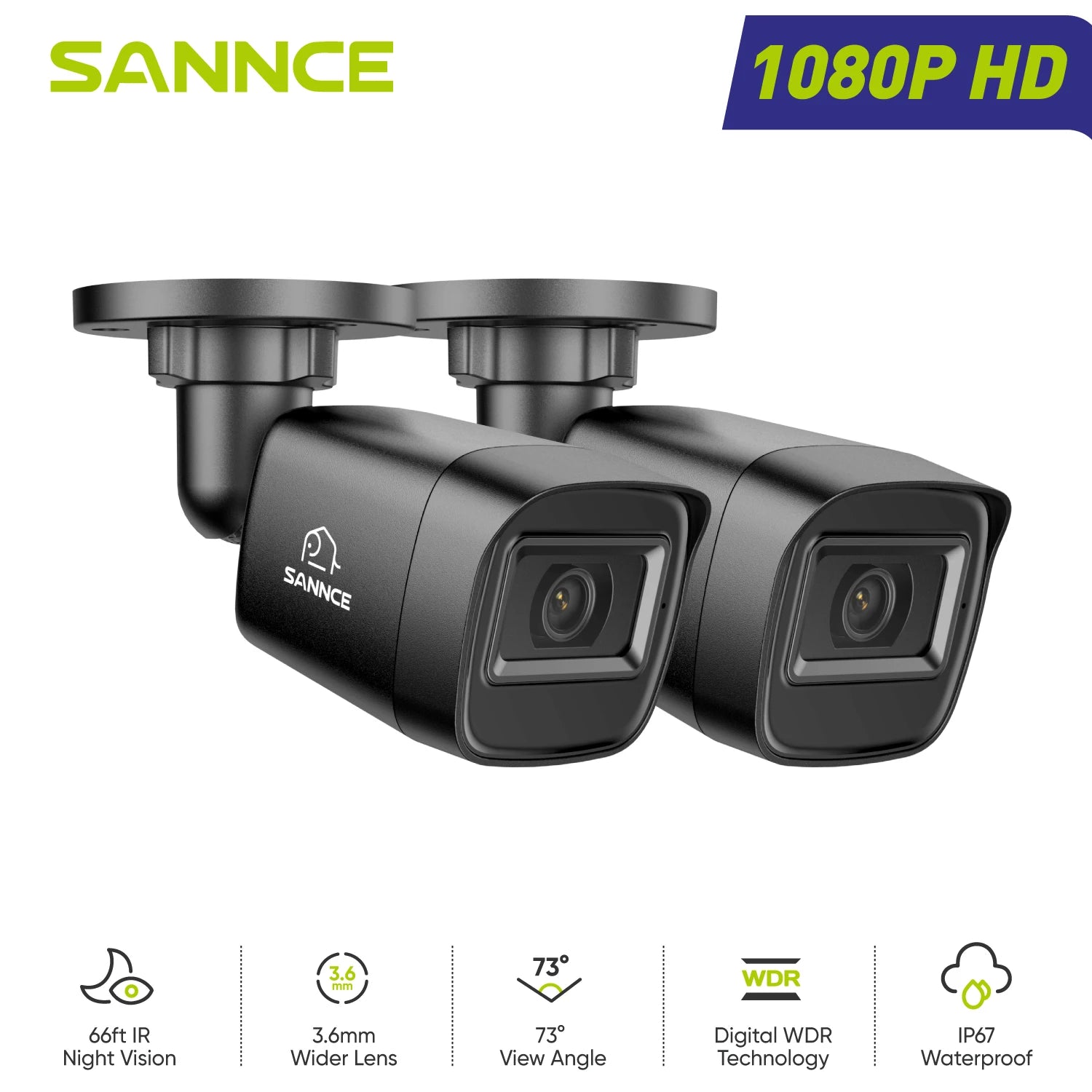

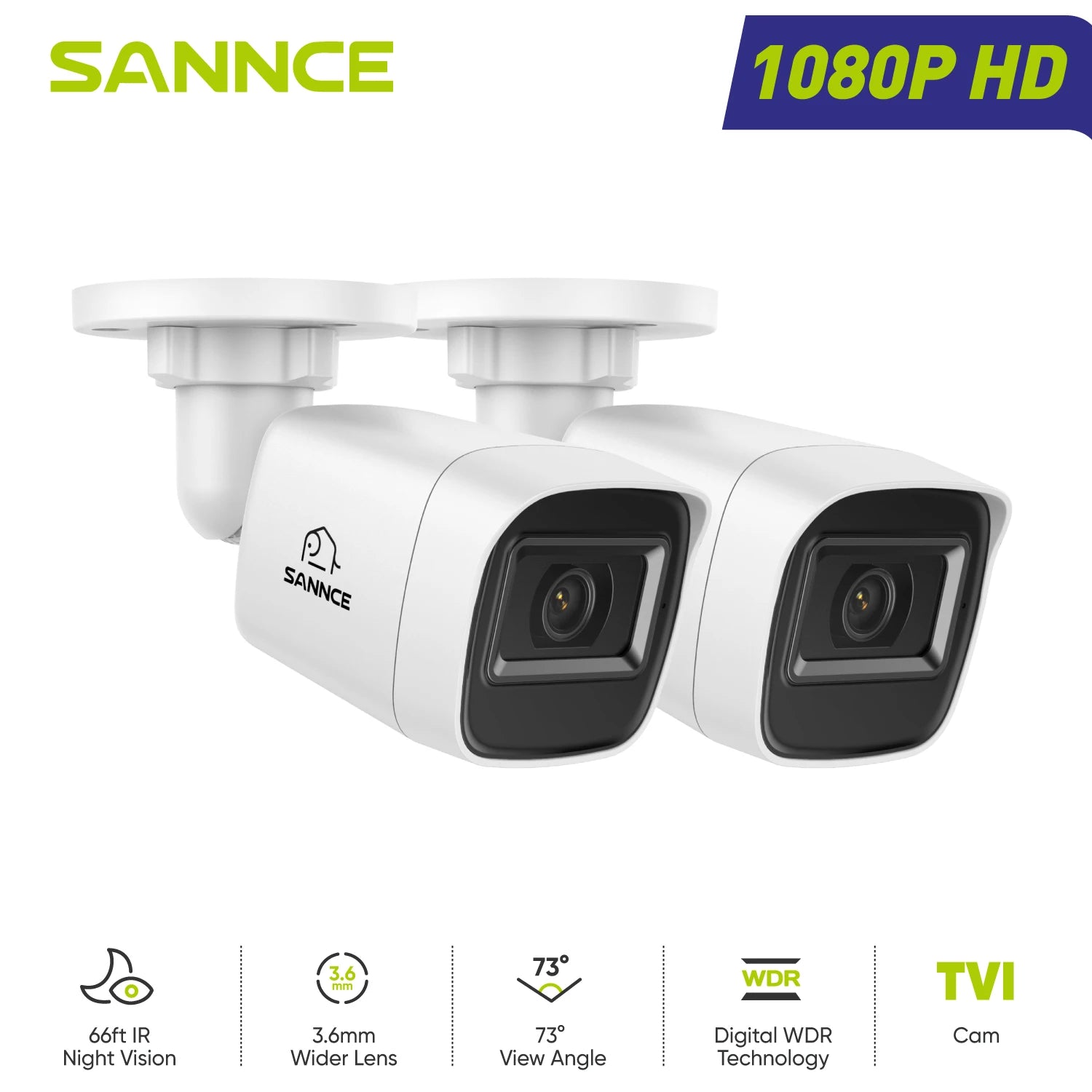

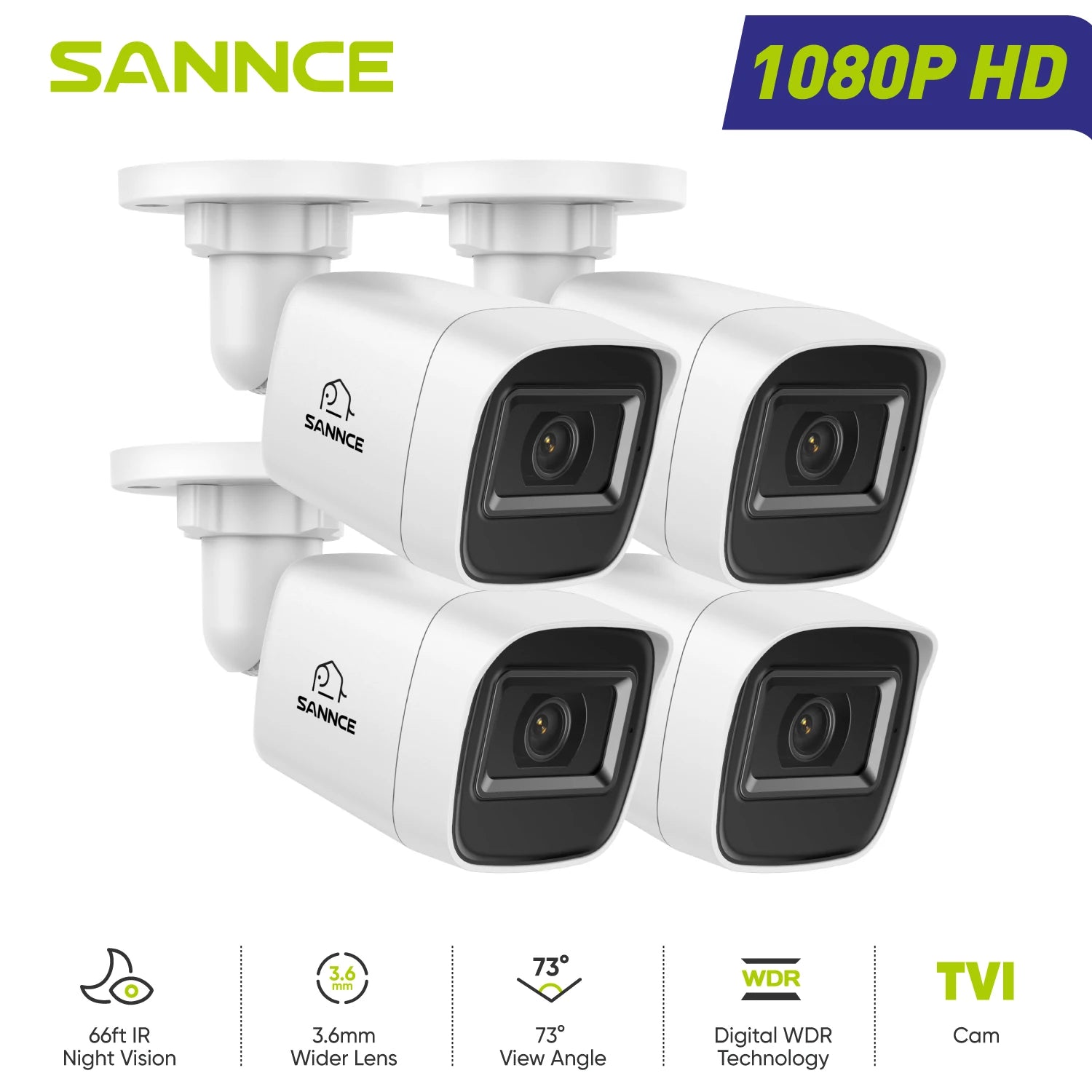

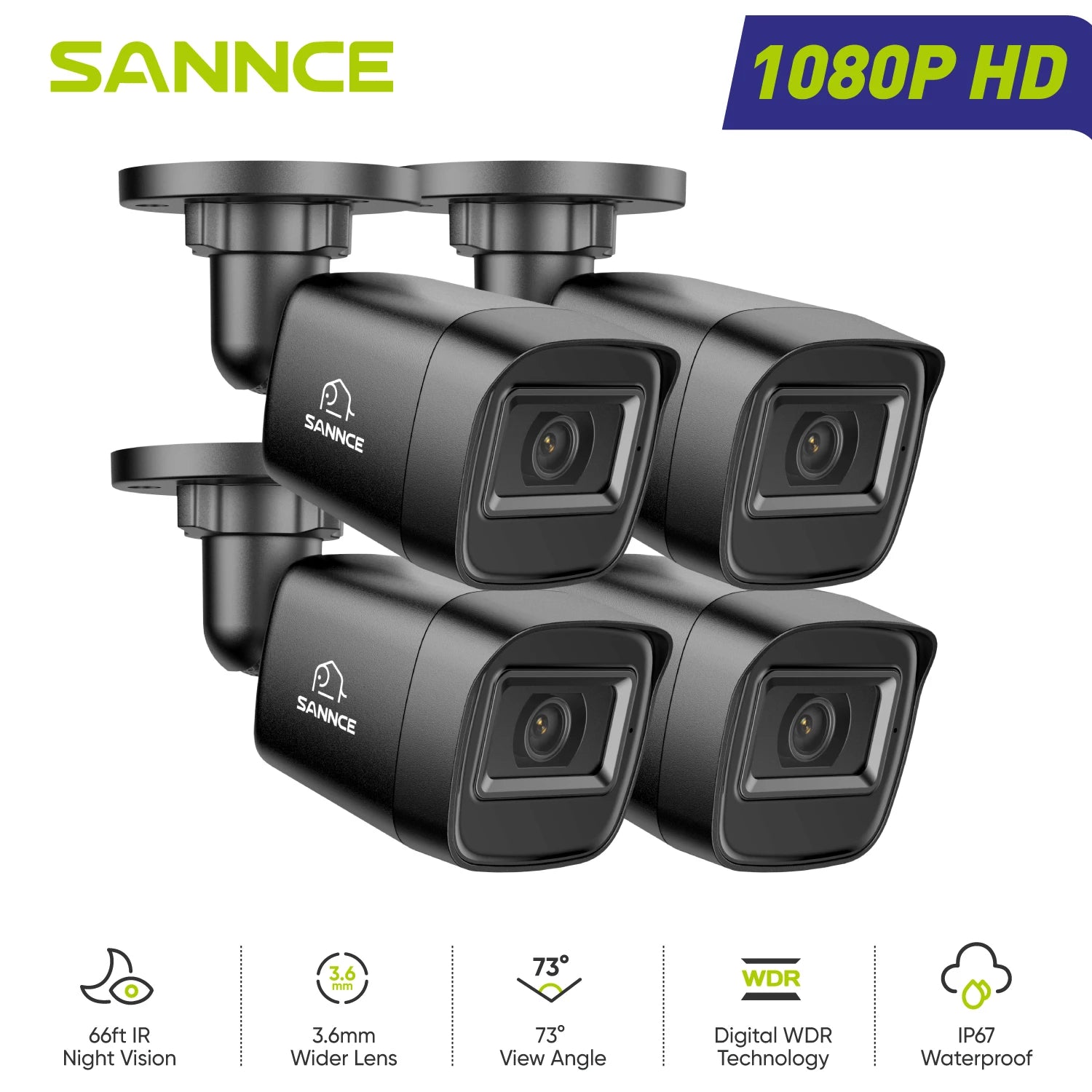

Capture every moment in crisp 1080p, day or night, with a compact 3.6mm bullet camera built for your real-world security.
- 2MP CMOS sensor delivers full 1080p video (PAL/NTSC) with a 3.6mm lens and a 70° viewing angle, giving you broad, detailed coverage.

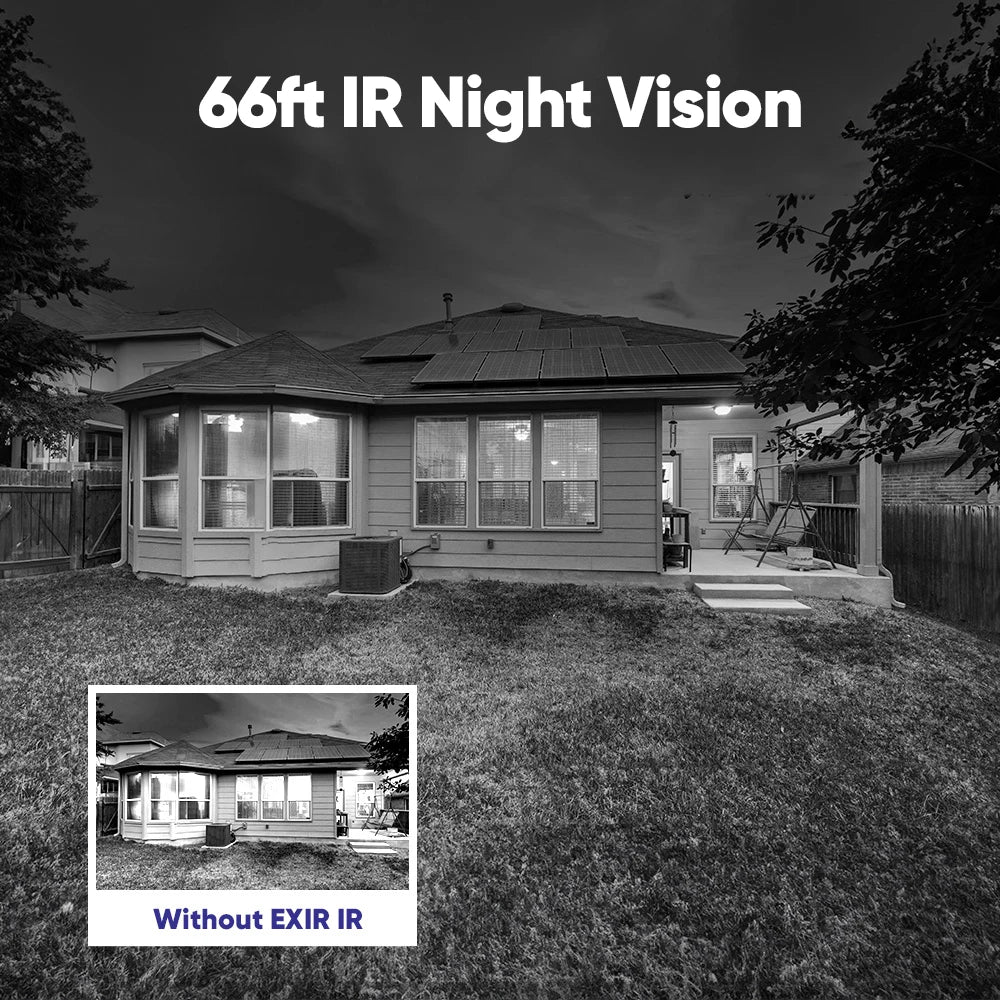

- You’ll enjoy up to 20m (66ft) night vision with Smart EXIR IR and auto IR-cut, keeping faces and details visible as lighting changes.

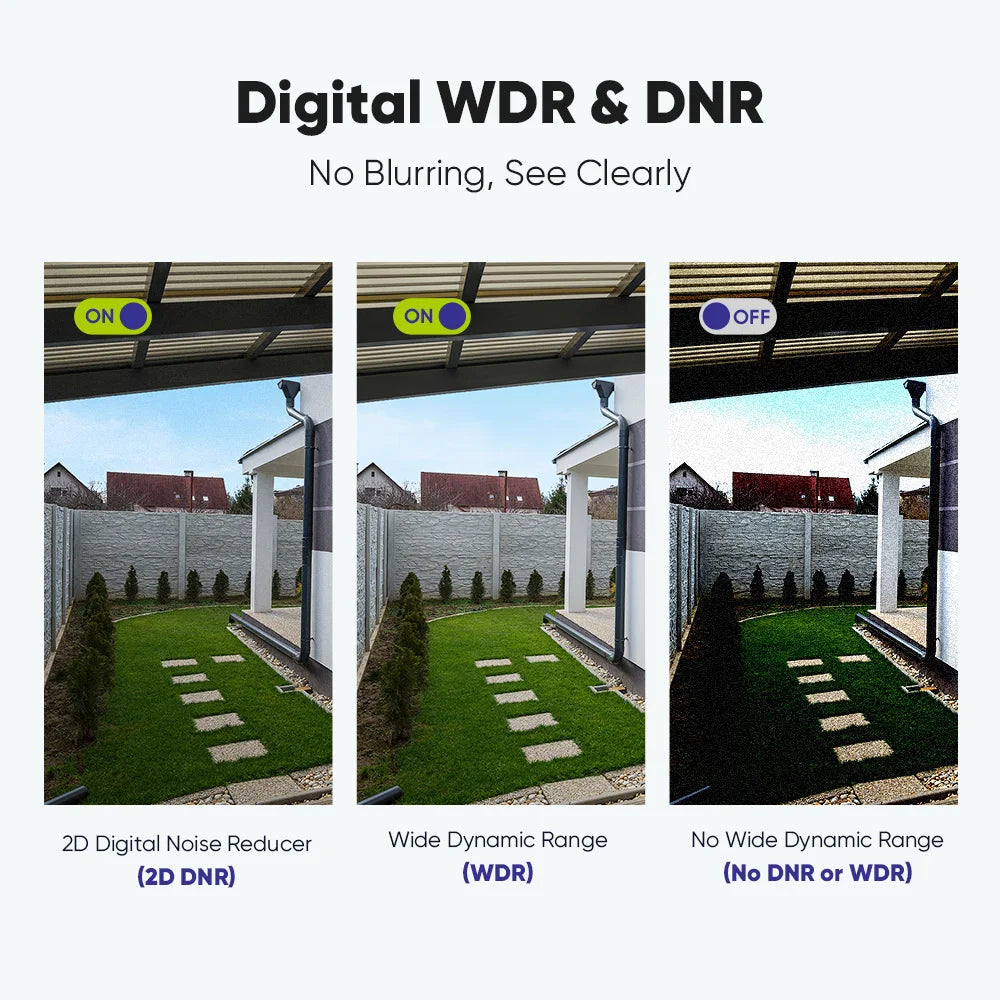

- DWDR and 2D DNR balance bright and shadowed areas and reduce noise so your footage stays clearer in challenging lighting.

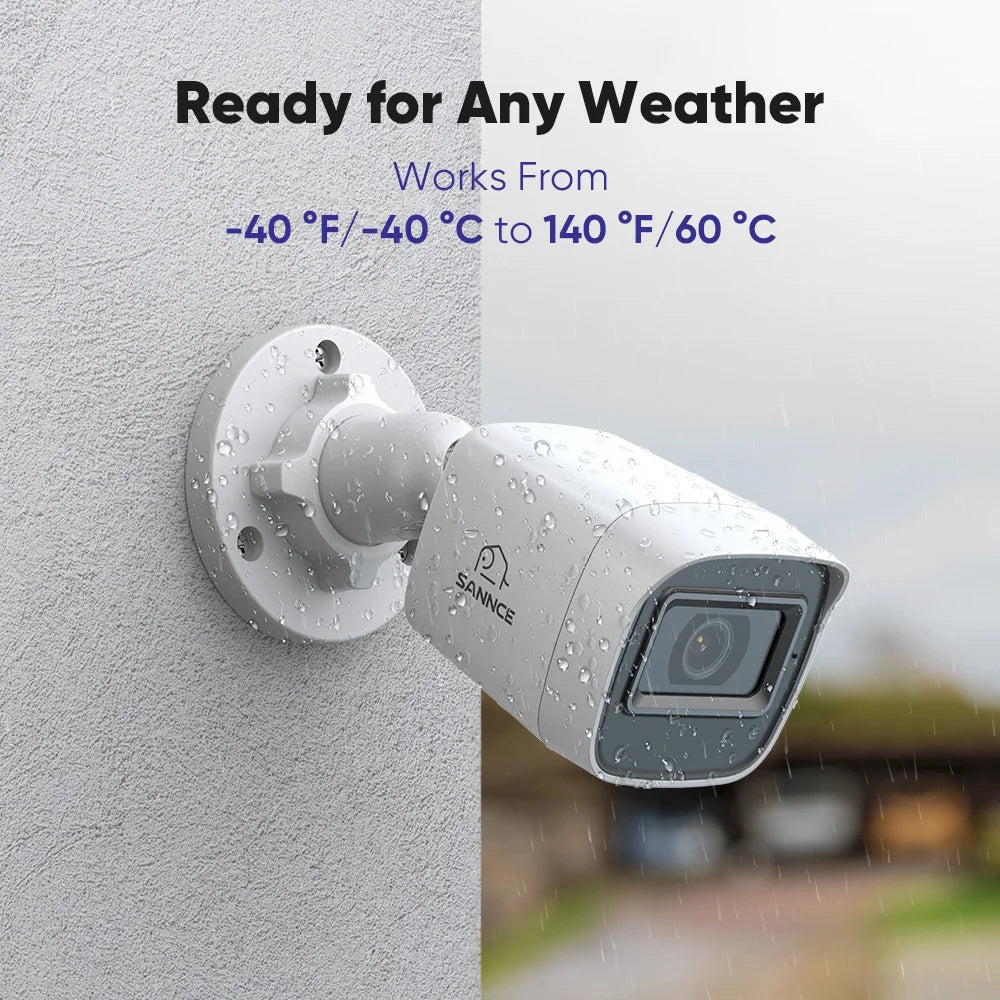

- Rugged IP67-rated housing supports indoor/outdoor use across -40°F to 140°F (-40°C to 60°C) and offers a single HD-BNC video output for easy DVR connection.
Model Number |
C51FE/C51EE |
HD Camera |
Camera |
Image Sensor |
2MP CMOS Image Sensor |
Video Resolution |
1920 (H) X 1080 (V) |
Signal System |
PAL/NTSC |
Frame Rate |
PAL: 1080p@25 fps NTSC: 1080p@30 fps |
Lens |
3.6 mm |
Min. Illumination |
Color: 0.02 Lux @(F1.2,AGC on); 0 Lux with IR on |
Angle of View |

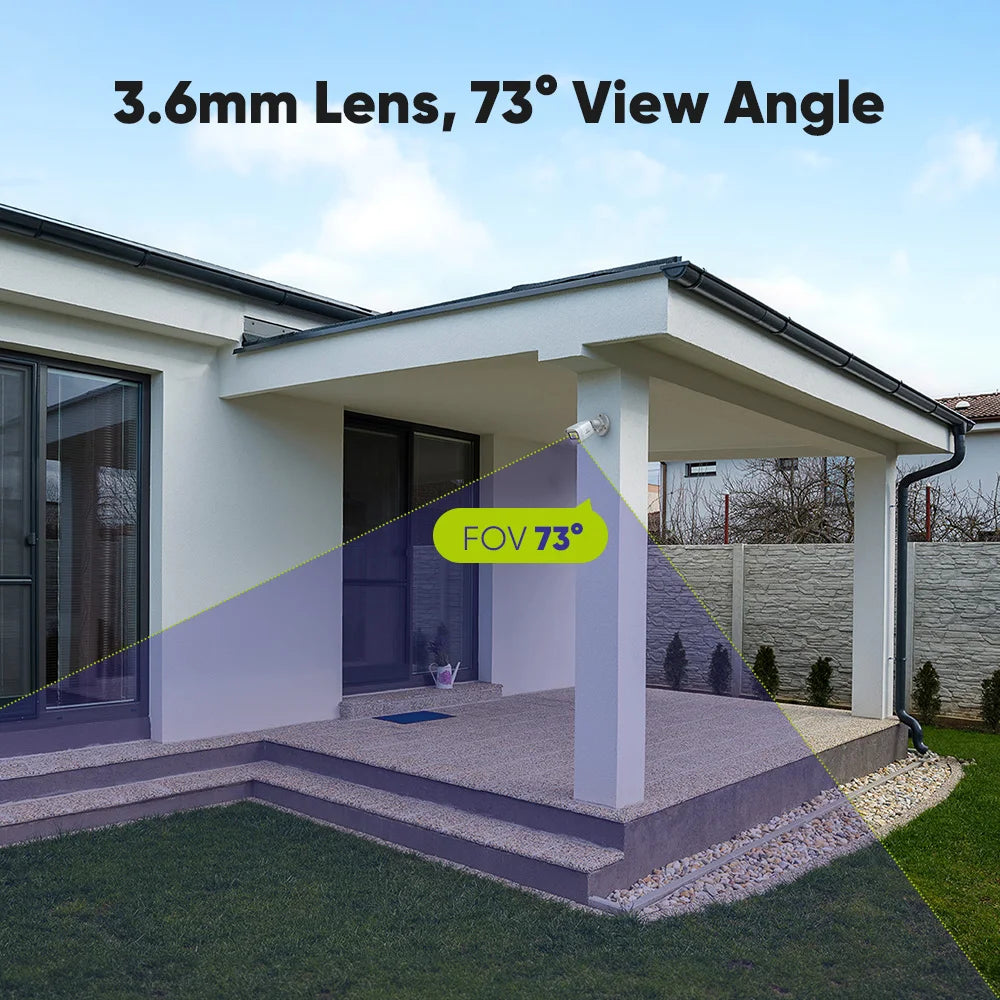

horizontal FOV: 73°, vertical FOV: 39°, |
Number of Infrared LEDs |
1 |
Night Vision Distance |
Up to 66ft/20 m |
DNR |
2D DNR |
Wide Dynamic Range |
DWDR |
IR-Cut Filter |
Yes |
Video Output |
HD BNC X1 |
General |
Housing |
Plastic |
Color |
White |
Operating Power |
DC 12 V |
Operating Temperature |
-40 °F – 140 °F/-40 °C – 60 °C |
Indoor/Outdoor |
Indoor/Outdoor |
Weatherproof Rating |
IP67 |
Dimension (L X W X H) |
|
Weight |
|

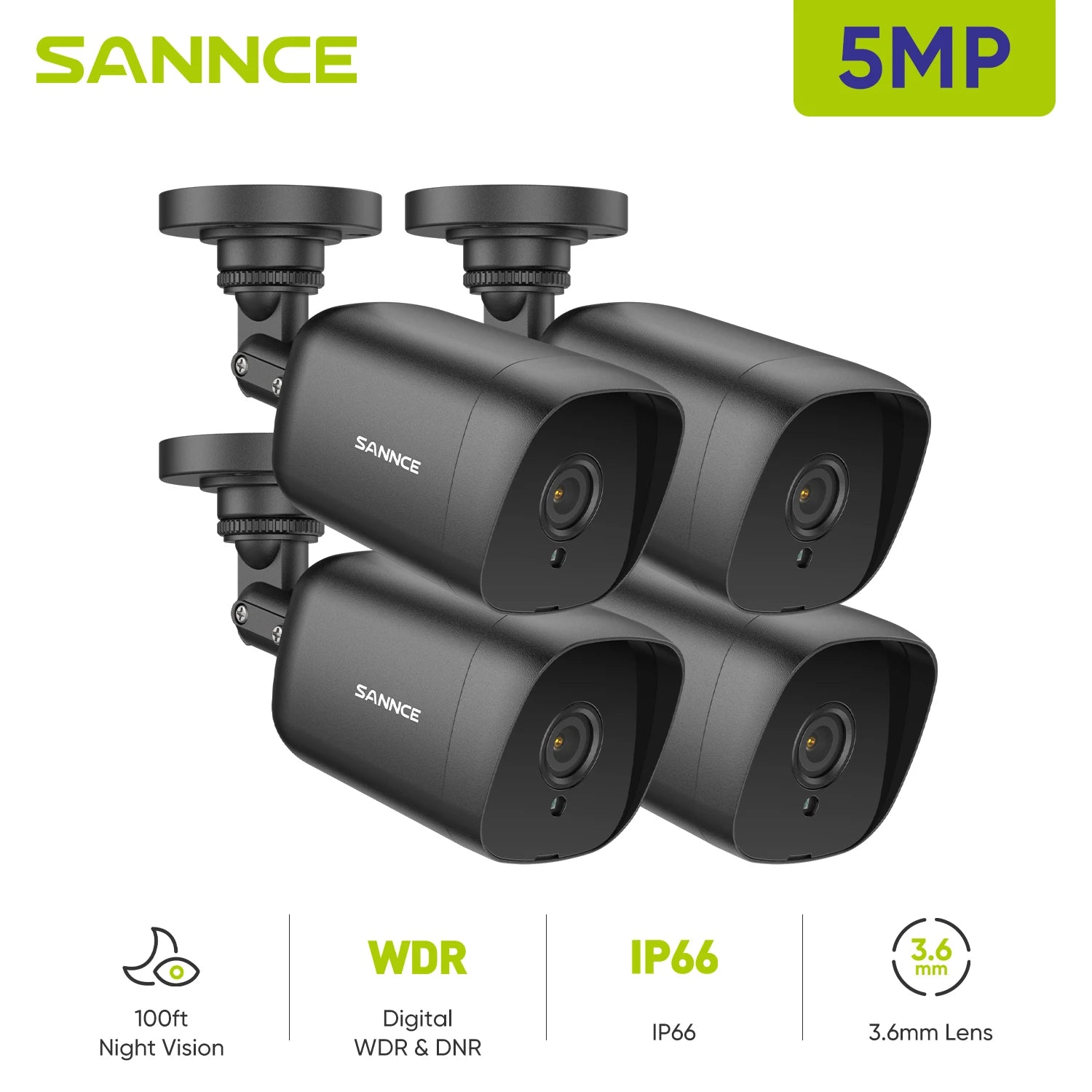

Model Number |
CR1CP |
|
|
HD Camera |
Camera |
Video Resolution |
AHD 5MP(12.5&20 Frame) |
Signal system |
PAL/NTSC |
Image sensor |
Progressive Scan CMOS |
Lens |
3.6mm |
Min.Illumination |
0.02Lux@(F1.2 AGC ON),0Lux with IR on |
Angle of View |
70° |
Number of Infra-Red LEDs |
12 |
Night Vision Distance |
Up to 100ft/30m |
DNR |
3D DNR |
Wide Dynamic Range |
Digital WDR |
IR Cut Filter |
Yes |
Video Output |
HD BNCx1 |
General |
Housing |
Plastic |
Color |
Black |
Operating Power |
DC12V |
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
Indoor/Outdoor |
Indoor/Outdoor |
Weatherproof Rating |
IP66 |
Dimension (L x W x H) |
6.49” x2.36” x 2.36” / 165 x 60 x 60mm |
Weight |
0.33lbs / 150g |
